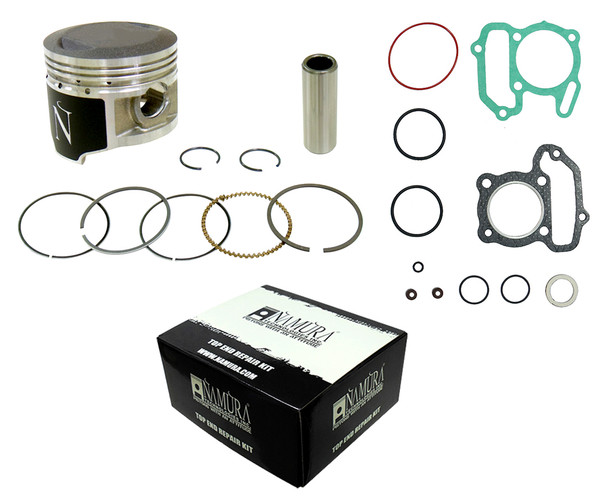

Namura Std Top End Kit 9.6:1 for Badger 80/Grizzly 80/Raptor 80 1985-2008
(No reviews yet)
Write a Review
- SKU:
- DS00-8927
- UPC:
- 0758891108731
- MPN:
- NA-40080K
- Condition:
- New
Description
| Specifications | |
|---|---|
| Part: | Top End Kit |
| Size: | 46.96 mm |
| Oversize: | Std |
| Piston Type: | Cast |
| Compression Ratio: | 9.6:1 |
| Notes: | Dome is NOT machine finished. |
Product Features
- Anodized piston head increases strength and heat dissapation.
- MOST Namura pistons feature a machined head which helps reduce carbon build-up and reflect heat.
- All components are manufactured to OE-specs.
- Paper gaskets are composed of non-asbestos Nitrile Butadiene bonded cellulose fiber materials, which maintain their tensile strength and torque retention in operating conditions over 300F.
- Seals and O-rings are made of either NBR, Fluoroviton, or Silicone. Each material is selected based on the following chacteristics: Temperature resistance, abrasion resistance, chemical resistance, and their Aniline Point. In certain applications a Teflon coating is also applied to prolong service life.
Fits:
| Make | Model | Year | Note |
|---|---|---|---|
| Yamaha | Badger 80 YFM80 | 1985-1988 | 9.6:1 Compression |
| Yamaha | Badger 80 YFM80 | 1992-2001 | 9.6:1 Compression |
| Yamaha | Grizzly 80 YFM80G | 2005-2008 | 9.6:1 Compression |
| Yamaha | Grizzly 80 YFM80GH Hunter Edition | 2006-2008 | 9.6:1 Compression |
| Yamaha | Raptor 80 YFM80R | 2005-2008 | 9.6:1 Compression |
| Yamaha | Raptor 80 YFM80W | 2002-2004 | 9.6:1 Compression |
