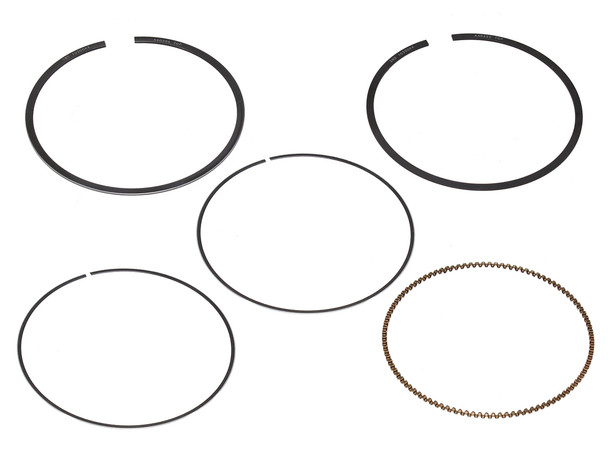

Namura 103.47mm Piston Rings for Yamaha Grizzly/Kodiak/Wolverine 700 2016-2018
(No reviews yet)
Write a Review
- SKU:
- DS00-8912
- MPN:
- NA-40025-2R
- Condition:
- New
Description
| Specifications | |
|---|---|
| Part: | Piston Rings |
| Size: | 103.47mm |
Product Features
- Compression rings are manufactured from either a highly ductile cast iron, or stainless steel alloy. The material of the rings is determined by the material of the cylinder wall the rings will be used with.
- Oil rings (4-stroke applications only) consist of three separate components. Two scraper rails and a single expansion ring. The expansion ring in manufactured from stainless steel while the scraper rails are either a highly ductile cast iron or stainless steel alloy. The material is determined by its intended use.
- Finally the rings are either chrome, nitride, or phosphate coated, depending on the intended application.
Fits:
| Make | Model | Year |
|---|---|---|
| Yamaha | Grizzly 700 YFM700D 4x4 FI | 2016 |
| Yamaha | Grizzly 700 YFM700P 4x4 FI EPS | 2016-2018 |
| Yamaha | Grizzly 700 YFM700PLE 4x4 Limited Edition FI EPS | 2016-2018 |
| Yamaha | Grizzly 700 YFM700PSE 4x4 Special Edition FI EPS | 2016-2018 |
| Yamaha | Kodiak 700 YFM700K 4x4 FI | 2017-2018 |
| Yamaha | Kodiak 700 YFM700KP 4x4 FI EPS | 2017-2018 |
| Yamaha | Kodiak 700 YFM700KPSE 4x4 Special Edition FI EPS | 2017-2018 |
| Yamaha | Kodiak 700K YFM700K 4x4 FI | 2016 |
| Yamaha | Kodiak 700K YFM700KP 4x4 FI EPS | 2016 |
| Yamaha | Kodiak 700K YFM700KPSE 4x4 Special Edition FI EPS | 2016 |
| Yamaha | Wolverine R-Spec YXE70 4x4 FI | 2016-2017 |
| Yamaha | Wolverine R-Spec YXE70 4x4 FI EPS | 2016-2018 |
| Yamaha | Wolverine R-Spec YXE70 4x4 FI EPS SE | 2016-2017 |
| Yamaha | Wolverine YXE70 4x4 FI | 2016-2018 |
| Yamaha | Wolverine YXE70 4x4 FI EPS | 2017-2018 |
